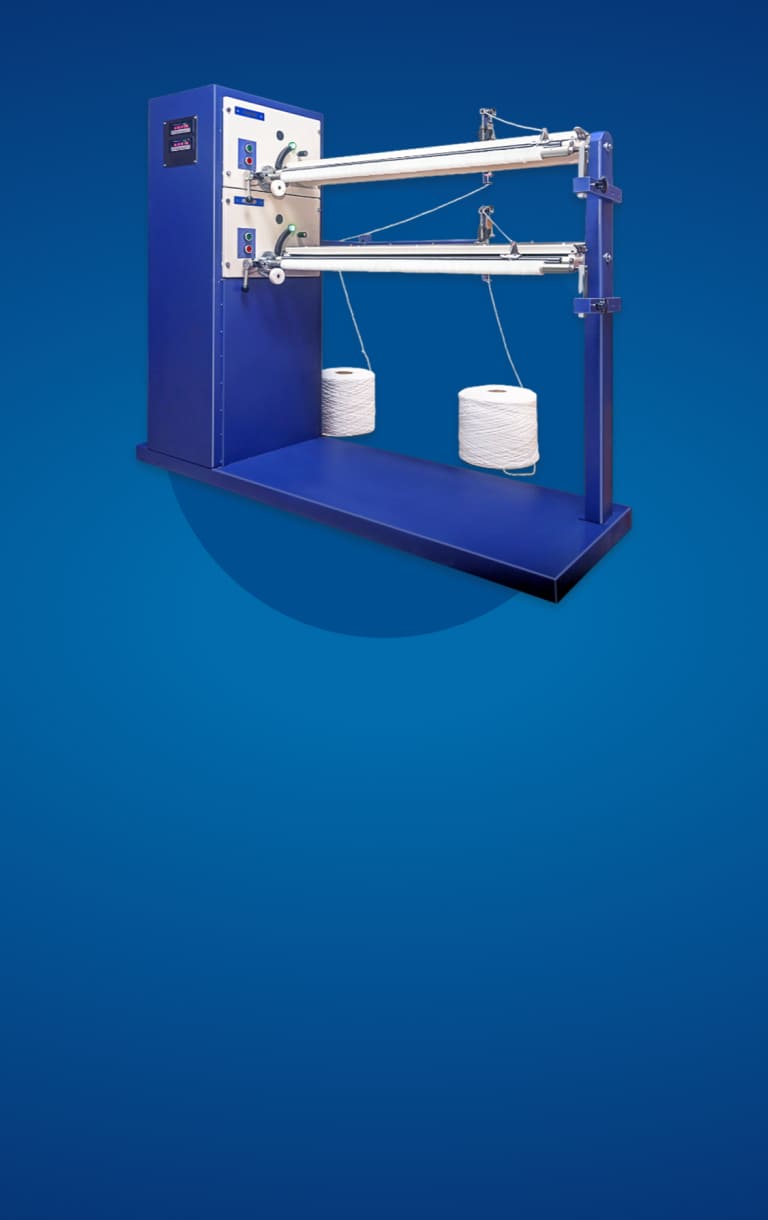

Wound Filter Production Machine
Simplify, customize, and filter with ease with the Wound Filter Production Machine.
The Wound Filter Production Machine features advanced technology with a variable frequency motor, servo motor/drive, and automatic stop sensor. With versatile winding core and tube options, this machine ensures precise, gear-free filter pattern changes and low maintenance for efficient operation.
| Technical Name | Software Supported Electronic String Wound Filter Machine |
| Technical Details |
|

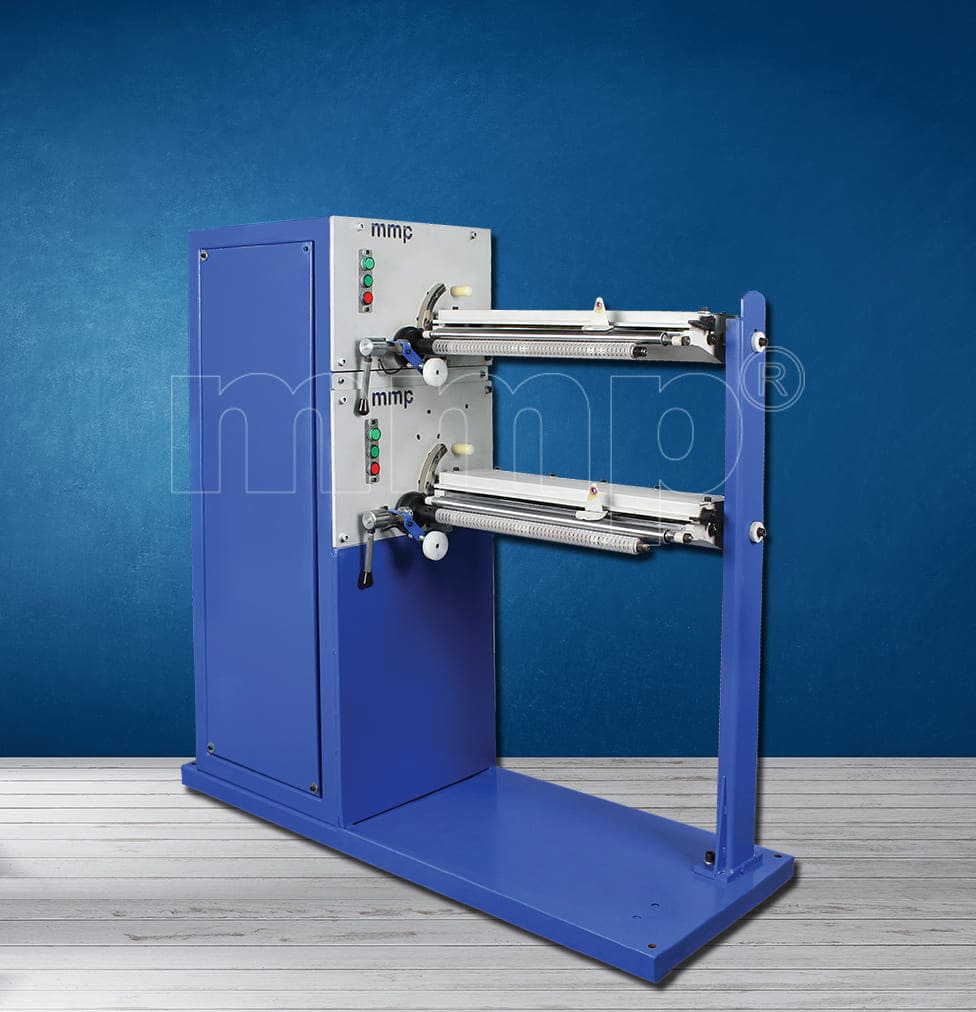

Wound Filter Cartridge Machine
Key Features and Benefits
- Precision Control: Equipped with a variable AC frequency drive and motor for enhanced precision and control over the winding process, with adjustable speeds.
- Versatile Power Options: Operates on standard or single-phase power (AC 220V/50HZ).
- Dual Spindle Operation: Features two spindles to produce two wound filter cartridges simultaneously, each with different or same lengths.
- Advanced Automation: Automatic stop sensors and manual timing gear ensure precise winding patterns.
- Material Adaptability: Supports winding core materials such as Polypropylene, Stainless Steel, or Tinned Steel.

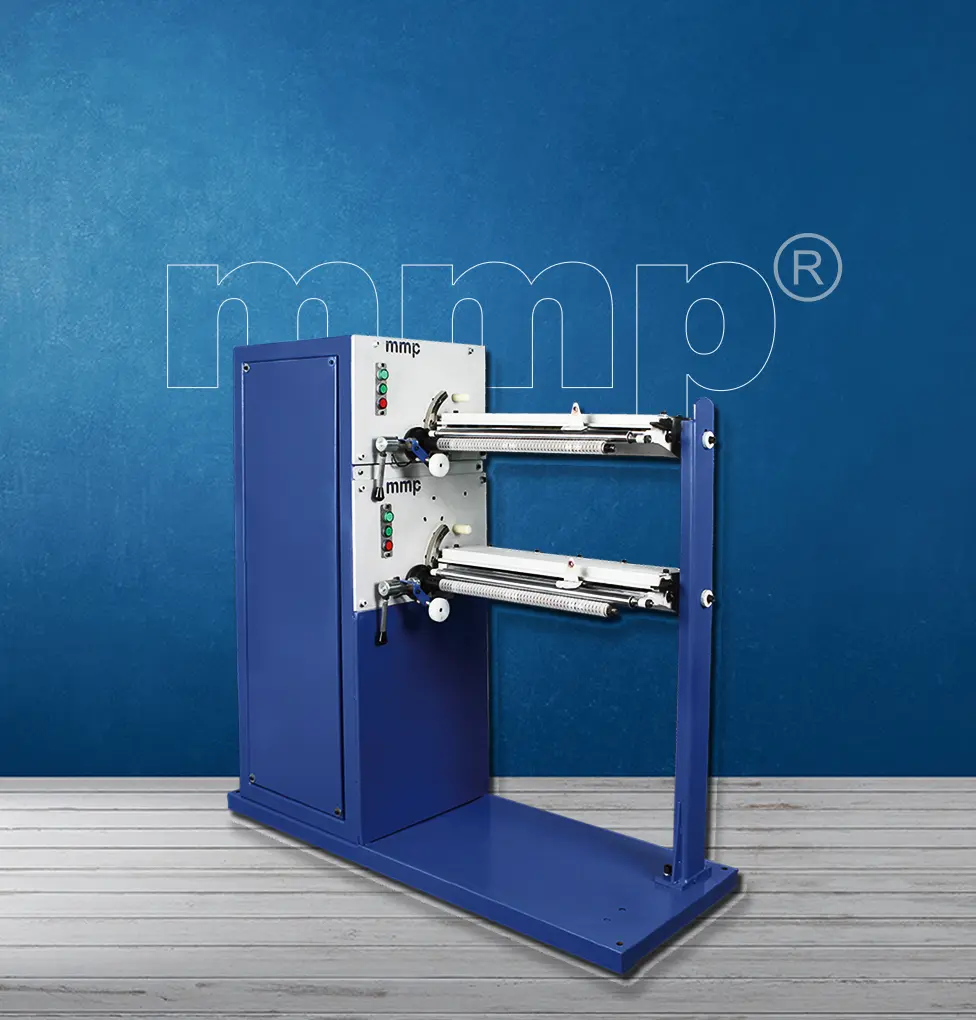

Discover the Power of Inline Filter Cartridge Winding Machine
High Efficiency
Maximizes production output with minimal downtime.
Customization
Flexible settings to meet specific filter size requirements.
Precision
Timing gears ensure accurate and consistent winding patterns.
Reliability
Robust construction and almost maintenance-free operation ensure long-term reliability.
TECHNICAL SPECIFICATIONS
| Machine Name | String Wound Filter Machine |
|---|---|
| Drive and Motor | Variable AC frequency drive and motor |
| Power | 220V/50HZ, Single Phase |
| Winding Core Material | Polypropylene, Stainless Steel, or Tinned Steel |
| Winding Tube Diameter | 28mm |
| Winding Lengths Available | 222, 235, 250, 254, 500, 508, 750, 762, 1000, 1016, 1270, 1778 mm |
| Automatic Stop Sensor | Activates at desired cartridge diameter |
| Winding Outer Diameter (OD) | 45 mm 200 mm |
| Pattern and Precision | Achieved through timing gears |
| Maintenance | Designed for minimal maintenance |
