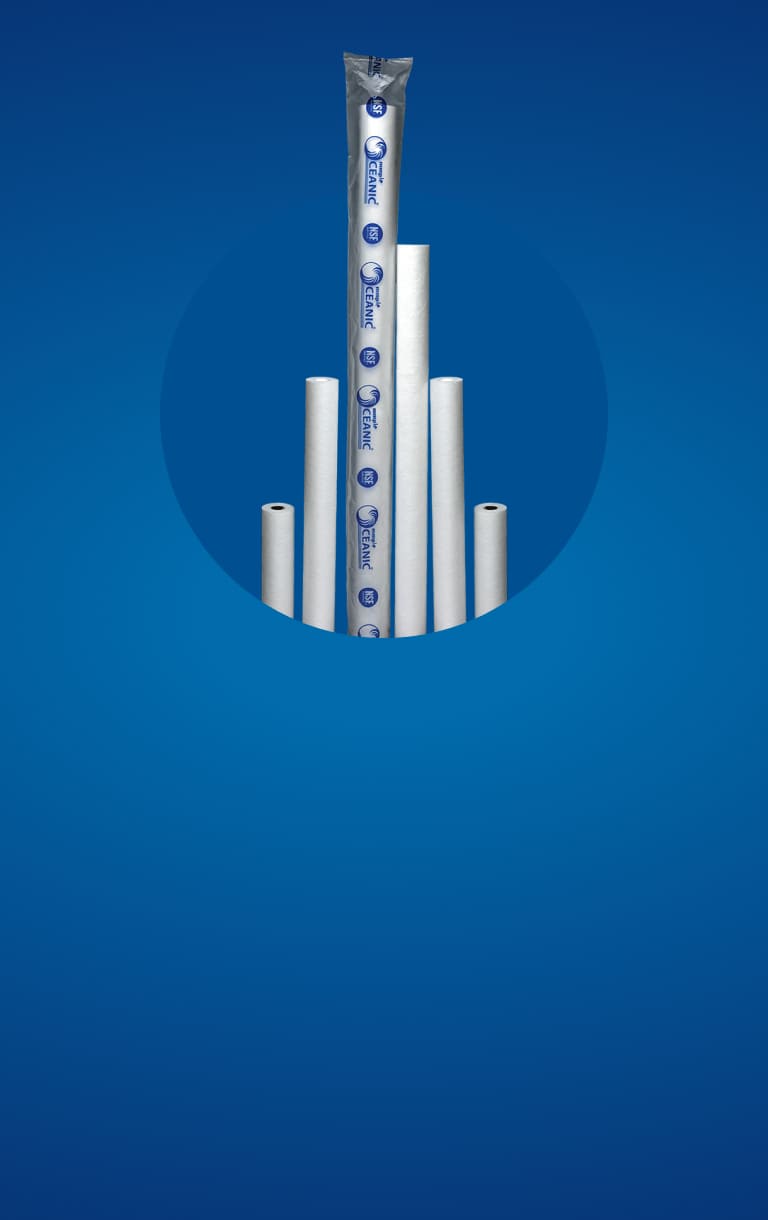

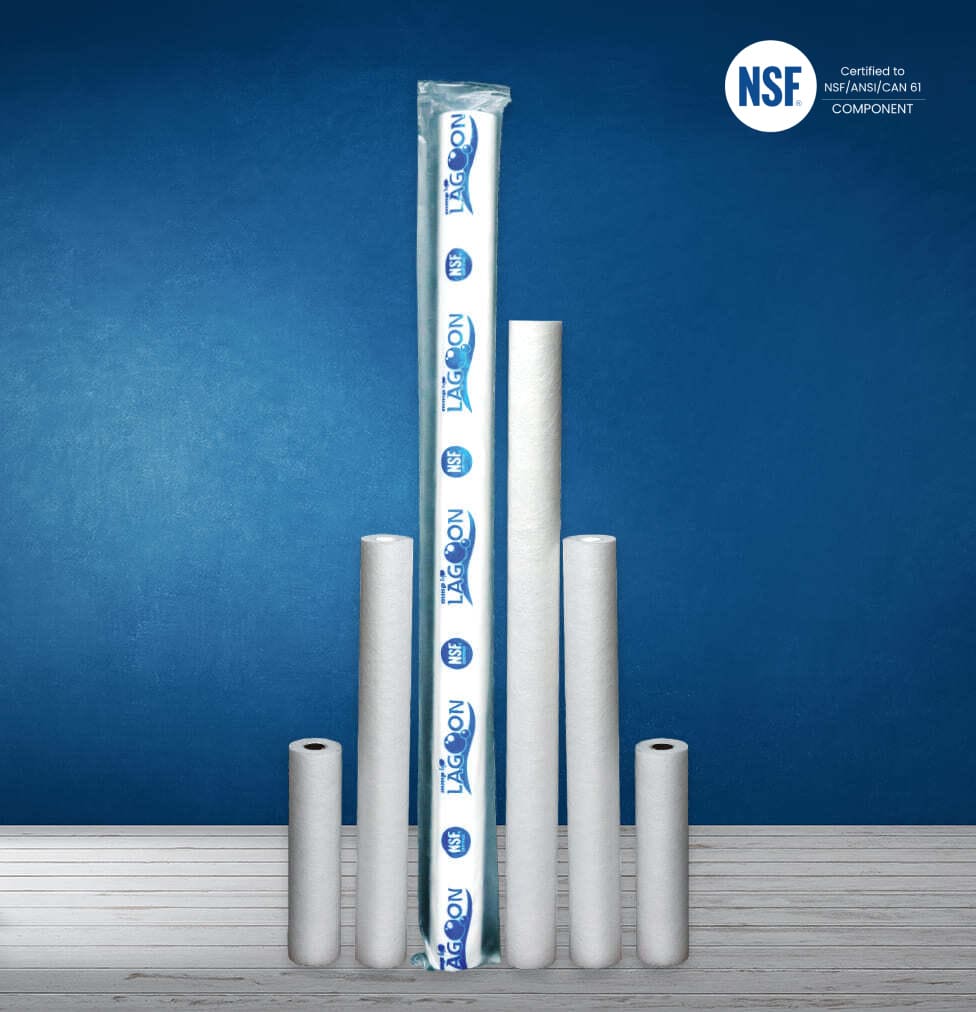

Lagoon Melt Blown Filter Cartridges (5 to 50 inches)

mmp proudly introduces Lagoon Melt Blown Filter Cartridges, the first in India to achieve NSF certification for unmatched filtration excellence. Manufactured in a controlled environment, these cartridges are crafted from virgin polypropylene resins, heated and extruded through spinnerets to form three distinct layers. The innermost layer captures minute impurities, while the two outer layers progressively trap larger particles, ensuring gradient filtration and superior water purity. Available in lengths from 5" to 50" and diameters up to 114.2mm, Jumbo, Lagoon cartridges deliver consistent, high-quality filtration across a variety of applications.

Designed for durability and efficiency, Lagoon Melt Blown Filter Cartridges offer a flow rate of 1m³ per hour per 10" at 2.5 kg/cm² and withstand temperatures up to 80°C. Their lightweight yet robust construction reduces strain on filtration systems, extends service life, and delivers cost-effective performance for domestic and commercial needs. Whether used for household water purification or specialized applications, the precision-engineered gradient design optimizes contaminant removal at every stage, ensuring cleaner, safer liquids for consumption and use.

Technical Name	Melt Blown Filter Cartridges (medium density)
Raw Material	Virgin Polypropylene
ID	20-35mm±
OD	50-63mm± 1mm Jumbo 114± 2mm
Length	5”-50” 127mm to 1778mm
Microns	1-100µ
Construction	Polypropylene fibres are extruded through tiny perforations under pressure and high temperature on a rotating mandrel, forming three layers for gradient filtration.
Flow	1m³ per hour per 10” at pressure of 2.5Kg/cm²
Temperature	Max. 60° C
